-BM14D load cells are available in the capacities 10t to 100t .
-They offer 17-4PH strainless steel construction,electronic hermetic sealing,oil-proof,waterproof and anti-corrosive gas
and medium making them lightening protected in all kinds of environment.
-Single column design,automatically recovery and they are suitable for platform scale,automobile testing facilities,
hopper scale and other electronic weighing devices.
Important Features
-Capacities: 10t to 100t .
-High accuracy.
-Strainless steel construction.
-Easy installation and reliable performance.
SPECIFICATIONS:
Capacity |
t |
10/20/25/30/40/50/100 |
|||
Accuracy class |
C2 |
C3 |
A5M |
B10M |
|
Maximum number of |
n max |
2000 |
3000 |
5000 |
10000 |
Minimum load cell |
v min |
E max/ 5000 |
E max /7500 |
E max /15000 |
E max/ 10000 |
Combined error |
(%FS) |
≤± 0.030 |
≤± 0.020 |
≤± 0.026 |
≤± 0.050 |
Creep |
(%FS/30min) |
≤± 0.023 |
≤± 0.016 |
≤± 0.017 |
≤± 0.040 |
Temperature effect |
(%FS/10℃) |
≤± 0.017 |
≤± 0.011 |
≤± 0.013 |
≤± 0.040 |
Temperature effect |
(%FS/10℃) |
≤± 0.029 |
≤± 0.019 |
≤± 0.014 |
≤± 0.020 |
Output sensitivity |
(mv/v) |
1.5 ± 0.002 |
|||
Input resistance |
( Ω ) |
700 ± 7 |
|||
Output resistance |
( Ω ) |
703 ± 4 |
|||
Insulation resistance |
(M Ω ) |
≥ 5000(50VDC) |
|||
Zero balance |
(%FS) |
2.0 |
|||
Temperature, |
( ℃ ) |
-10 ～ +40 |
|||
Temperature,allowed |
( ℃ ) |
-35 ～ +65 |
|||
Excitation, |
(V) |
5 ～ 12(DC) |
|||
Excitation,Max |
(V) |
18(DC) |
|||
Safe overload |
(%FS) |
150 |
|||
Ultimate overload |
(%FS) |
300 |
|||

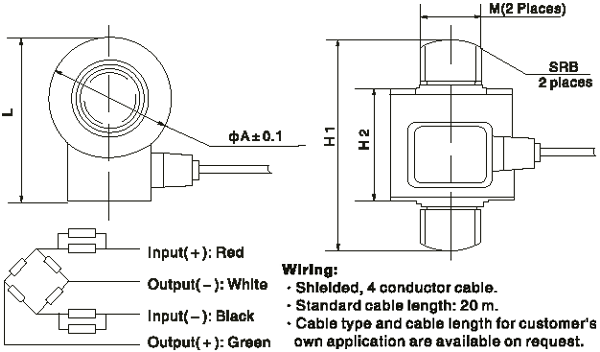

Outline Dimension mm(inch)
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
M |
SR |
10,25t 10,25,50K |
73 (2.85) |
82.5 (3.25) |
38.23 (1.5) |
58 (2.28) |
7.75 (0.31) |
2.6 (0.10) |
64 (2.25) |
31.8 (1.25) |
M12X1.75 1/2-20UNF |
152 (5.98) |
40,60t 100K |
105 (4.13) |
127 (5.0) |
65.07 (2.56) |
82.5 (3.25) |
9.4 (0.37) |
4 (0.16) |
87 (3.43) |
58.7 (2.31) |
M20X2.5 3/4-16UNF |
152 (5.98) |
100t 200K |
151.4 (5.96) |
184.2 (7.25) |
87.35 (3.44) |
123.8 (4.87) |
23.15 (0.91) |
3.7 (0.15) |
108 (4.26) |
79.4 (3.13) |
432 (17.01) |
|
300K |
151.4 (5.96) |
184.2 (7.25) |
87.35 (3.44) |
123.8 (4.87) |
23.15 (0.91) |
3.7 (0.15) |
108 (4.26) |
79.4 (3.13) |
3/4-20UNF-2B |
432 (17.01) |
500K |
162.6 (6.40) |
228.6 (9.0) |
101.5 (4.0) |
136.3 (5.37) |
10.85 (0.43) |
3.7 (0.15) |
123 (4.84) |
93.7 (3.69) |
432 (17.01) |
