-BM14K load cells are available in the capacities 10t to 100t .
-They offer 17-4PH strainless steel construction,electronic hermetic sealing,oil-proof,waterproof
and anti-corrosive gas and medium making them lightening protected in all kinds of environment.
-Single column,automatically recovery and they are suitable for platform scale,automobile testing
facilities,hopper scale and other electronic weighing devices.
Important Features
-Capacities: 10t to 100t .
-High accuracy.
-Strainless steel construction.
-Easy installation and reliable performance.
-With OIML approval:(PTB:D09-07.02)
Accessories
-HM-14-404
-BY-14-102
SPECIFICATIONS:
Capacity |
t |
10/15/20/30/40/50/60/100 |
|||
| Accuracy class | C2 |
C3 |
A5M |
B10M |
|
Approval |
OIML R60 C3 |
||||
Maximum number of |
n max |
2000 |
3000 |
5000 |
10000 |
Minimum load cell |
v min |
E max/ 5000 |
E max /7500 |
E max /15000 |
E max/ 10000 |
Combined error |
(%FS) |
≤ 0.030 |
≤± 0.020 |
≤± 0.026 |
≤± 0.050 |
Creep |
(%FS/30min) |
≤ 0.023 |
≤± 0.016 |
≤± 0.017 |
≤± 0.040 |
Temperature effect |
(%FS/10℃) |
≤ 0.017 |
≤± 0.011 |
≤± 0.013 |
≤± 0.040 |
Temperature effect |
(%FS/10 ℃) |
≤ 0.029 |
≤± 0.019 |
≤± 0.014 |
≤± 0.020 |
Output sensitivity |
(mv/v) |
2.0 ± 0.02 |
|||
Input resistance |
( Ω ) |
700 ± 7 |
|||
Output resistance |
( Ω ) |
703 ± 4 |
|||
Insulation resistance |
(M Ω ) |
≥ 5000(50VDC) |
|||
Zero balance |
(%FS) |
1.5 |
|||
Temperature, |
( ℃ ) |
-10 ～ +40 |
|||
Temperature,allowed |
( ℃ ) |
-40 ～ +80 |
|||
Excitation, Recommended |
(V) |
5 ～ 12(DC) |
|||
Excitation,Max |
(V) |
18(DC) |
|||
Safe overload |
(%FS) |
150 |
|||
Ultimate overload |
(%FS) |
300 |
|||

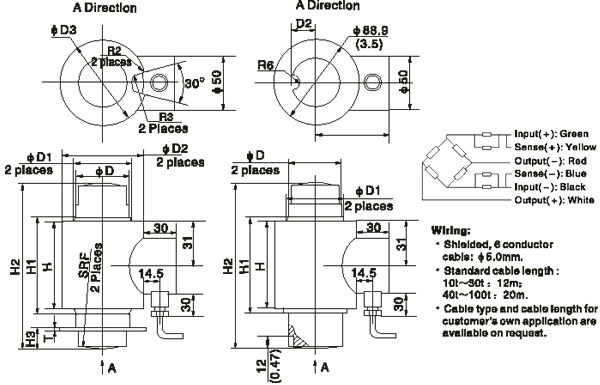

Outline Dimension mm(inch)
Capacity(t) |
D |
D1 |
D2 |
D3 |
H |
H1 |
H2 |
H3 |
H4 |
T |
SRF |
10-15 |
44 (1.73) |
49 (1.93) |
74 (2.91) |
76 (2.99) |
80 (3.15) |
88 (3.46) |
130 (5.12) |
12 (0.74) |
5 (0.2) |
3 (0.12) |
200 (7.87) |
20,30,40 |
44 (1.73) |
49 (1.93) |
74 (2.91) |
76 (2.99) |
92 (3.62) |
100 (3.94) |
130 (5.12) |
19 (0.75) |
5 (0.2) |
3 (0.12) |
200 (7.87) |
50-60 |
44 (1.73) |
49 (1.93) |
74 (2.91) |
76 (2.99) |
92 (3.62) |
100 (3.94) |
210 (8.27) |
19 (0.75) |
5 (0.2) |
3 (0.12) |
300 (11.81) |
100 |
64 (2.52) |
68 (2.66) |
93 (3.66) |
103 (4.06) |
121 (4.71) |
128 (5.04) |
260 (10.24) |
19 (0.75) |
7 (0.28) |
5 (0.2) |
400 (15.75) |
