Digital Load Simulator Model EL41

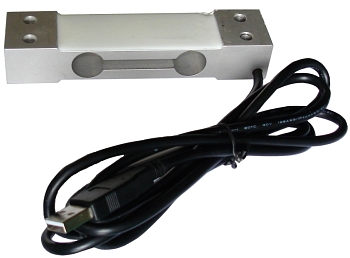

USB Load Cell


Elane USB Load Cell Specifications

PC Program

PC Program (Data Logger)

Download Datasheet

Buy 5kg USB Load Cell NOW

Buy 15kg USB Load Cell NOW

Buy 30kg USB Load Cell NOW

Buy USB Load Cell PC Program with Datalogger NOW

Buy USB Load Cell Bracket NOW

Buy Calibration Weight Set NOW




PC Program (Optional):

  •  Display weight in Gram, Kilogram, Pound, Pound-Ounce, and Ounce.

  •  Tare

  • Calibration with user defined calibration points and unit

  • Configurable Overload, Division and Zero Tracking Range

USB Load Cell PC Program Screenshot

USB Load Cell PC Program Screenshot 2

PC Program with Data Logger (Optional):

The PC Program with Data Logger display and log the USB Load Cell's AD Count. Logging interval is between 1 to 3600 seconds and logging duration is between 1 to 86400 seconds. Output file is CSV or Text file. Playback button is for playing previously logged data.

USB Load Cell PC Datalogger

Load Cell Specifications:

Capacity (kg) 5, 15, 30
Outline Size (mm) 130X30X22
Non-Linearity (%FS) 0.017
Hysteresis, Non-Repeatability (%FS) 0.01
Creep (%FS/30min) 0.015
Temperature effect on span (%FS/10C) 0.014
Temperature effect on zero (%FS/10C) 0.017
Temperature, compensated(C) -10-to +40
Temperature, operation(C) -35 to +65
Safe Overload(%FS) 150
Ultimate Overload(%FS) 300
Protection Class IP65
Cable Length (m) 2
