SPECIFICATIONS:

Capacity t 0.8,3,4,5 Combined Error %FS 0.03 0.05 Temperature effect on span %FS/10¡æ 0.10 Rated Output mV/V 2.0¡À0.1 Temperature effect on zero %FS/10¡æ 0.10 Non-linearity %FS 0.2 0.3 Temperature,compensated ¡æ -10--+55 Hysteresis %FS 0.2 0.3 Temperature,operating ¡æ -35--+65 Non-repeatability %FS 0.1 Excitation,recommended V 9-12(DC) Creep(%FS/30min) 0.1 Excitation,permition V 6-18(DC) Input Resistance ¦¸ 460¡À50 Safe Overload %FS 120 Output Resistance ¦¸ 350¡À3.5 Ultimate Overload %FS 150 Insulation Resistance M¦¸ >5000(50VDC) Protection Class   IP66 Zero Balance %FS 1.0 Cable Length m 1.5



---

Double shear beam, alloy steel, nickel-plated, sealed construction, suitable for vehicle-testing equipments, hopper scales and other electronic weighing devices.

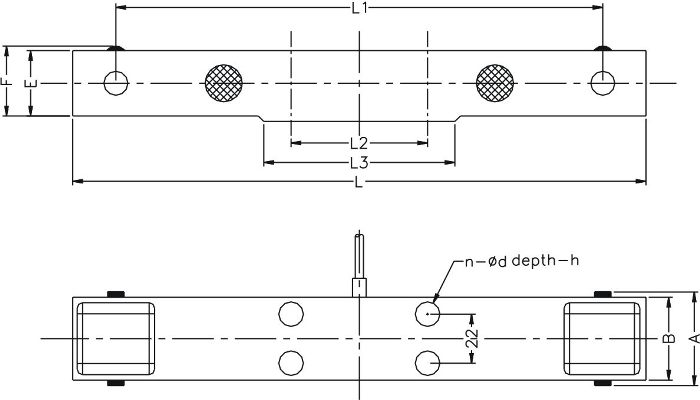

OUTLINE SIZE:

Capacity(t)	L	L1	L2	L3	A	B	E	F	n	d	D	h
0.8	190	150	30	50	30.4	24	27	24	2	9	15	11
3,4,5	416	360	100	120	58.4	50	40	37	4	12	18	12
