| Capacity |
Klb |
1/1.5/2/2.5/4/5/10/15/20/25/35/50/75 |
||||
|
Accuracy class |
|
C1 |
C2 |
C3 |
A5M |
B10M |
|
Maximum number of |
n max |
1000 |
2000 |
3000 |
5000 |
10000 |
|
Minimum load cell |
v min |
Emax/3000 |
Emax/7500 |
Emax/15000 |
Emax/10000 |
Emax/7500 |
|
Combined error |
(%FS) |
≤±0.050 |
≤±0.030 |
≤±0.020 |
≤±0.026 |
≤±0.050 |
|
Creep |
(%FS/30min) |
≤±0.038 |
≤±0.024 |
≤±0.016 |
≤±0.017 |
≤±0.040 |
|
Temperature effect |
(%FS/10℃) |
≤±0.028 |
≤±0.017 |
≤±0.011 |
≤±0.013 |
≤±0.040 |
|
Temperature effect |
(%FS/10℃) |
≤±0.047 |
≤±0.023 |
≤±0.015 |
≤±0.014 |
≤±0.020 |
|
Output sensitivity |
(mv/v) |
3.0±0.008 |
||||
|
Input resistance |
(Ω) |
700 ±7 |
||||
|
Output resistance |
(Ω) |
703 ±4 |
||||
|
Insulation resistance |
(MΩ) |
≥ 5000(50VDC) |
||||
|
Zero balance |
(%FS) |
1.0 |
||||
|
Temperature, compensated |
(C) |
-10～+40 |
||||
|
Temperature,allowed |
(C) |
-35～+65 |
||||
|
Excitation, Recommended |
(V) |
5～12(DC) |
||||
|
Excitation,Max |
(V) |
18(DC) |
||||
|
Safe overload |
(%FS) |
120 |
||||
|
Ultimate overload |
(%FS) |
150 |
||||
Double shear beam, alloy steel, nickel-plated, adhesive-sealed, suitable for electronic vehicle-testing equipment, hopper scales and other electronic weighing devices.

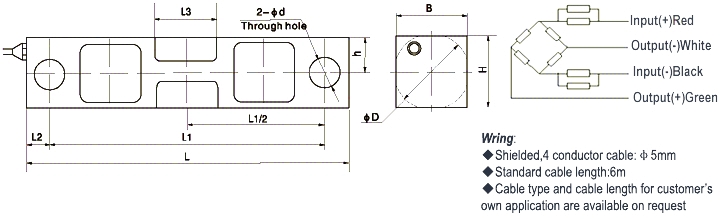

OUTLINE SIZE MM (INCH):
|
Capacity
|
L
|
L1
|
L2
|
L3
|
H
|
h
|
B
|
φD
|
φd
|
|
1-5
|
190.5
(7.5) |
158.75
(6.25) |
15.9
(0.63) |
30.48
(1.2) |
30.99
(1.22) |
16.76
(0.66) |
30.99
(1.22) |
31.5
(1.24) |
12.7
(0.5) |
|
10-35
|
222.25
(8.75) |
190.5
(7.5) |
15.9
(0.63) |
41.15
(1.62) |
49.15
(1.94) |
24.58
(0.97) |
36.45
(1.44) |
50.8
(2.0) |
20.57
(0.81) |
|
50-75
|
342.9
(13.5) |
292.1
(11.5) |
25.4
(1.0) |
82.55
(3.25) |
74.68
(2.94) |
37.34
(1.47) |
61.98
(2.44) |
75.95
(2.99) |
33.32
(1.31) |
