ELC-L108
SPECIFICATIONS:
| Capacity | kg | 2.5,3,5,6,8,10,15,20,30,35,40,50 | |||
| Combined Error | OIML R60 C3 | Temperature effect on span | %FS/10℃ | 0.017 | |
| Rated Output | mV/V | 2.0+0.1 | Temperature effect on zero | %FS/10℃ | 0.02 |
| Non-linearity | %FS | 0.02 | Temperature,compensated | ℃ | -10--+40 |
| Hysteresis | %FS | 0.02 | Temperature,operating | ℃ | -20--+65 |
| Non-repeatability | %FS | 0.01 | Excitation,recommended | V | 9-12(DC) |
| Creep(%FS/30min) | 0.02 | Excitation,permition | V | 6-18(DC) | |
| Input Resistance | Ω | 406+10 | Safe Overload | %FS | 120 |
| Output Resistance | Ω | 350+3.5 | Ultimate Overload | %FS | 150 |
| Insulation Resistance | MΩ | >5000 | Protection Class | IP65 | |
| Zero Balance | %FS | 2.0 | Cable Length | m | 0.4 |
 Recommended platform size:250X350mm |
Single point cantilever beam, aluminum-alloy, colorless anodized, adhesive-sealed, suitable for small sized platform scales such as retail scales, bench and counting scales.

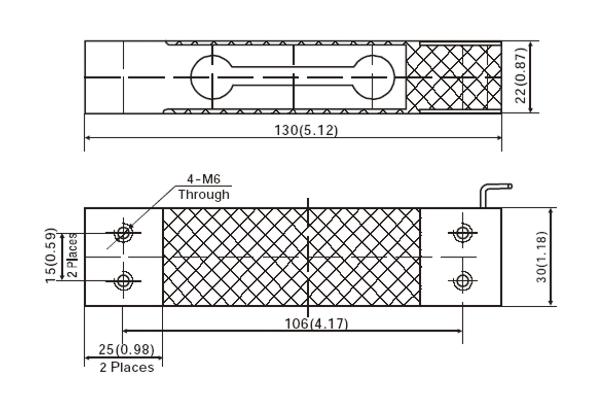

OUTLINE SIZE:
