ELC-L112
SPECIFICATIONS:
| Capacity | kg | 50,l00,150,200,250,500,700,750,1000,2000 | |||
| Combined Error | %FS | 0.02 | Temperature effect on span | %FS/10℃ | 0.017 |
| Rated Output | mV/V | 2.0+0.1 | Temperature effect on zero | %FS/10℃ | 0.02 |
| Non-linearity | %FS | 0.02 | Temperature,compensated | ℃ | -10--+40 |
| Hysteresis | %FS | 0.02 | Temperature,operating | ℃ | -20--+65 |
| Non-repeatability | %FS | 0.02 | Excitation,recommended | V | 9-12(DC) |
| Creep(%FS/30min) | 0.02 | Excitation,permition | V | 6-18(DC) | |
| Input Resistance | Ω | 406+10 | Safe Overload | %FS | 120 |
| Output Resistance | Ω | 350+3.5 | Ultimate Overload | %FS | 150 |
| Insulation Resistance | MΩ | >5000 | Protection Class | IP65 | |
| Zero Balance | %FS | 2.0 | Cable Length | m | 3 |
|
50-200kg 600X600mm |
Single point cantilever beam, aluminum-alloy, colorless anodized, adhesive-sealed, suitable for platform scales with single or double load cells.

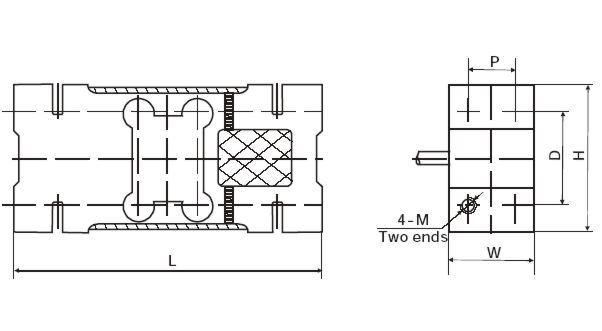

OUTLINE SIZE:
|
Capacity(kg)
|
L
|
W
|
H
|
D
|
P
|
M
|
|
50-200
|
156
|
44
|
75
|
50
|
24
|
M12-7H
|
|
250-500
|
146
|
60
|
95
|
70
|
36
|
M12-7H
|
|
750-2000
|
176
|
76
|
125
|
95
|
46
|
M16-7H
|
