ELC-L115
SPECIFICATIONS:
| Capacity | kg | 0.3,0.5,0.6,1,3 | |||
| Combined Error | %FS | 0.02 | Temperature effect on span | %FS/10¡æ | 0.03 |
| Rated Output | mV/V | 1.0+0.1 | Temperature effect on zero | %FS/10¡æ | 0.03 |
| Non-linearity | %FS | 0.02 | Temperature,compensated | ¡æ | -10--+40 |
| Hysteresis | %FS | 0.02 | Temperature,operating | ¡æ | -20--+65 |
| Non-repeatability | %FS | 0.02 | Excitation,recommended | V | 9-12(DC) |
| Creep(%FS/30min) | 0.02 | Excitation,permition | V | 6-18(DC) | |
| Input Resistance | ¦¸ | 394+10 | Safe Overload | %FS | 120 |
| Output Resistance | ¦¸ | 350+3.5 | Ultimate Overload | %FS | 150 |
| Insulation Resistance | M¦¸ | >5000 | Protection Class | IP65 | |
| Zero Balance | %FS | 2.0 | Cable Length | m | 0.45 |
 Recommended platform size:200X200mm |
Single point cantilever beam, aluminum-alloy, colorless anodized, adhesive-sealed, suitable for counting scales and electronic balances.

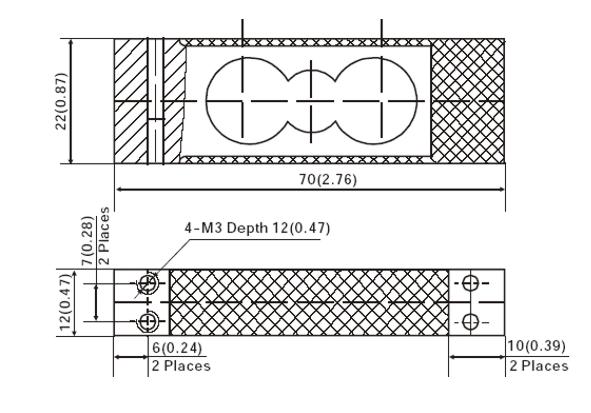

OUTLINE SIZE:
