ELC-L117
SPECIFICATIONS:
| Capacity | kg | 3,5,8,20,30,35 | |||
| Combined Error | %FS | 0.02 | Temperature effect on span | %FS/10¡æ | 0.017 |
| Rated Output | mV/V | 2.0+0.2 | Temperature effect on zero | %FS/10¡æ | 0.017 |
| Non-linearity | %FS | 0.02 | Temperature,compensated | ¡æ | -10--+40 |
| Hysteresis | %FS | 0.02 | Temperature,operating | ¡æ | -20--+65 |
| Non-repeatability | %FS | 0.02 | Excitation,recommended | V | 9-12(DC) |
| Creep(%FS/30min) | 0.02 | Excitation,permition | V | 6-18(DC) | |
| Input Resistance | ¦¸ | 410+10 | Safe Overload | %FS | 120 |
| Output Resistance | ¦¸ | 350+3.5 | Ultimate Overload | %FS | 150 |
| Insulation Resistance | M¦¸ | >5000 | Protection Class | IP65 | |
| Zero Balance | %FS | 2.0 | Cable Length | m | 0.38 |
 Recommended platform size:250X350mm |
Single point cantilever beam, aluminum-alloy, colorless anodized, strain gages bonded on one side, adhesive-sealed, suitable for small sized platform scales such as retail and bench scales

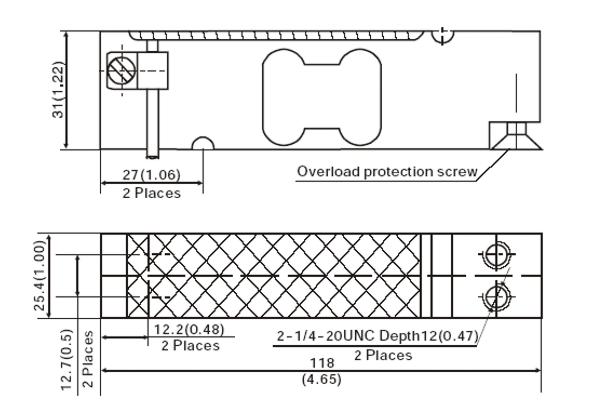

OUTLINE SIZE:
.
