Load Cell Amplifier PRO


Load Cell Amplifier PRO (Low Noise)


Load Cell Amplifier PRO View Technical Specifications

View Calibration Instructions

Download Datasheet

Buy Load Cell Amplifier PRO NOW

Buy Calibration Weight Set NOW




Technical Specifications:

Operating Environment:
Temperature: 0-50 degrees.
Humidity: 30 to 80 percent, non-condensing.

Power Supply Requirements
:
Power Supply voltage: 9 volts DC.
Operating current: 5mA, plus bridge current.

Bridge Input:
Excitation voltage
: 5 volts.
Bridge Type: Full Wheatstone Bridge.

Voltage Output Range:
From 0 volts to 4.3 volts.

Potentiometer Function Descriptions:
VR1: Load cell offset adjustment.
VR2: Gain of AMP adjustment.(Gain range 1 to 1000)
VR3: Reference voltage of AMP adjustment.

Wiring Diagram:
E+ : Load Cell E+
S- : Load Cell S -
S+: Load Cell S+
E-: Load Cell E-
Shield: Load Cell Shield Wire
V: Power Supply +
G1: Power Supply -
G2: Signal -
S: Signal +

Load Cell Amplifier PRO

Load Cell Amplifier Calibration Instructions:

1. Adjust the zero output voltage: Remove all weight from platform and then adjust VR1 or VR3 with screwdriver to the intended value.
2.
Adjust the max output voltage: Put full-scale weight on platform and then adjust VR2 with screwdriver to the intended value.
3. Remove all weight from the platform, if the output is not the initial zero voltage output, repeat the step 1 and 2 until the initial zero voltage output and the full scale voltage output.


Load Cell Amplifier Circuit

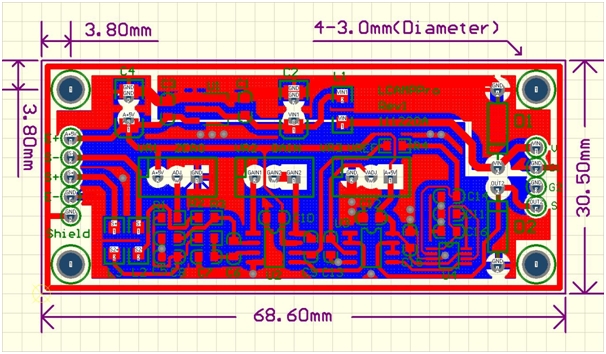

Load Cell Amplifier PRO PCB
